How To Build a Gaming PC in 2018 (Full Beginners Guide)

0

Build a Gaming PC: PC gaming is the most interesting and attractive activity for all gaming lovers. PC gaming could be an expensive pursuit and as we recommend for more better performance, pricing also starts moving up on to the ladder.

The best gaming PC is not the one that you can buy, it’s that which you build. It is an expensive work to build a gaming PC. The very basic requirements for a good gaming PC are- Latest Processor, CPU cooler, Motherboard, More RAM, Memory, Video Card, Case, Power supply and more.

There are various options present in the market to build a gaming PC according to your budget and requirements. Here this article will give you information and guidance on How to Build a Gaming PC in 2018 (Full Guide) i.e. approximately having the latest types of equipment required in the best gaming PC.

Basic Things You Required to Build a Gaming PC:

  • Best latest Processor
  • I/O shield
  • Most Effective CPU Cooler
  • More RAM
  • Best Graphics Card
  • More Battery and Power
Build a Gaming PC
How to Build a Gaming PC in 2018 (Full Beginners Guide)

How to Build a Gaming PC in 2018 (Full Beginners Guide)

I have seen many sites are sharing the guide on how to build a gaming pc cheap but our mission is different. How Tech Hack is providing you with the gaming pc build guide. Not the regular garbage which you find on other sites. Hence, you can build a gaming pc online using the below table to buy some good & powerful parts. Follow the below steps to know about this gaming pc builder guide: –

List of Gaming PC Parts:

Sr. No.Parts or DevicesNameLinks to buy productsPrice
1.ProcessorIntel i7 Processorhttps://amzn.to/2Gei5Z1$295
2.CPU CoolerCorsair H100iV2https://amzn.to/2us1YBJ$109
3.MotherboardAsus ROG STRIX Z370-Ehttps://amzn.to/2pMpl3y$180.28
4.RAMCorsair Vengeancehttps://amzn.to/2pJUpSc$189.99
5.MemorySamsung 950 EVOhttps://amzn.to/2pNOaff$119.99
6.Video CardGeForce GTX 1080Tihttps://amzn.to/2uwUddE$1,599.89
7.CaseCorsair 750Dhttps://amzn.to/2GfCQQ9$159.98

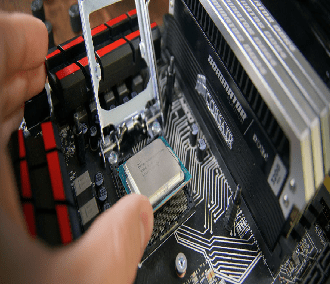

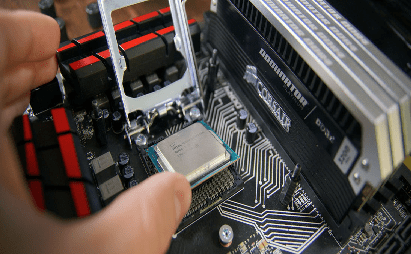

1. Best Latest Processor:

The very important need of a gaming PC is a well effective processor. The very latest Processor around us is Intel i7 processor.

With this new 8th generation processor Play your Favorite 3D games in high resolution, better details, faster frame rate, giving you an amazing gaming experience on your PC.

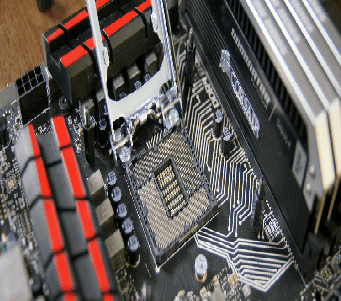

The way to install a CPU processor is as: CPUs are installed into the motherboard in the CPU socket.

While installing the CPUs firstly remove your motherboard from the anti-sleeve and place it on a flat place, then remove the protective covering over the CPU socket on the Motherboard by pushing the arms down and the side, then pulling the covering up.

Now it is ready to be installed. Now drop the CPU into the slot and don’t push it.

When it looks well placed then close the latching arm and lock it into the place.

Lock the arm to hold the CPU into the place. So, that part is replaced and a new processor is now on to work in a much effective way to give the best gaming experience on PC.

2. I/O Shield:

IO Shield

Removing or opening up the PC case is very simple as undoing the thumbscrew at the back of the case that holds the panels in place and then removing them.

After de-installing the PC case lay the case flat so that the main section faces up. Your Motherboard should have come with a rectangular plastic or metal shield that fits onto the motherboard’s input/output ports.

To install the I/O shield into the case, the first orient it correctly according to the motherboard, and then fit it into the slot at the back of the PC case.

It will require pressing it into the slot from within the case, they are a little tricky to install and its edges are sharp to take care of your hands.

Press against each side of the I/O shield until it gives you a solid snap.

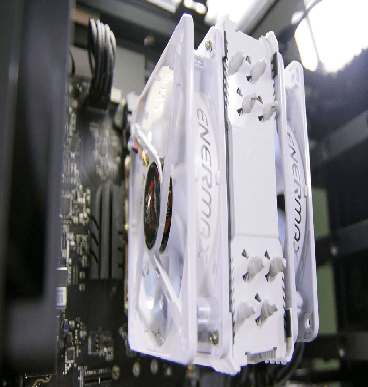

3. Most Effective CPU Cooler:

A CPU cooler is a hardest and tricky part to be installed as these are present in various designs.

There are a number of CPU cooler available in the market.

To install the CPU cooler the very basic steps of installation are given in its installation guide.

Different CPU coolers have their different ways of installation as per there design and operating way.

A few tips and advice are:

  • Extreme series sockets do not presently require backplates for any CPU cooler we’ve installed.
  • Non extreme Intel motherboards will require a backplate and install it before mounting the board to make it easier.
  • Ensure that screw tension is NOT warping the board. While tightening the backplate and CPU cooler will cause the board to wrap in a non-straight line i.e. bad for the components.
  • Allow the tightening of the CPU cooler- done with opposing corners-to spread the components.

Let be sure to connect the CPU cooler’s power cable after completing the installation.  For the liquid Coolers, check the manual to connect it to power.

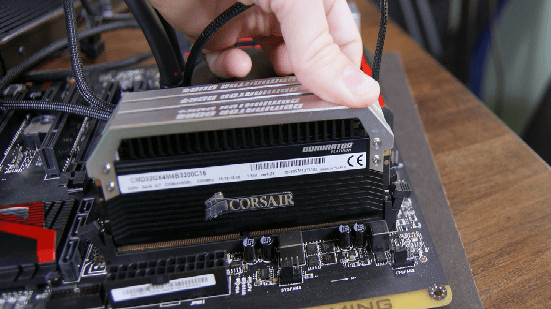

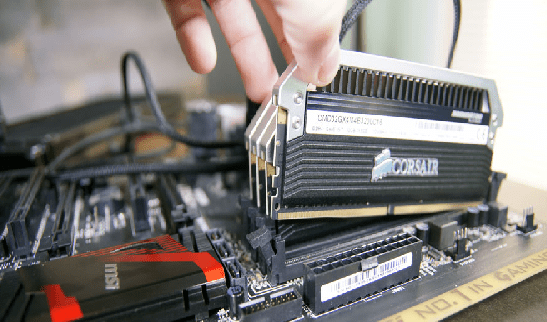

4. More RAM:

Installing a RAM is the easiest step to perform.

To install RAM, first, check the motherboard for the slots to use initially.

If saturating only half of the total memory slots, then it is important to use the correct slots to ensure multi-channel configurations are active.

These slots are usually color coordinated.

Once you know where you have to put the RAM, unlock the slot by pushing down on the hinged tabs on one end.

Line-up the notch on the underside of the memory with the notch in the motherboard’s memory socket.

Evenly set the RAM in the slot and apply some pressure on the outsides of the stick.

Observe that the RAM should be not loose. The tabs will click into place when the sticks are fully inserted.

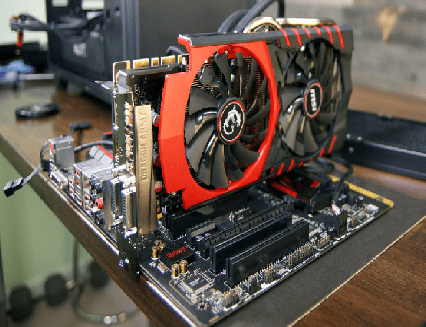

5. Best Graphics Card:

Best Graphics Card

The Graphics card is the most important and necessary component for any gaming laptop or PC.

The graphics card ensures to give the user the best quality graphic and resolutions of the game to have a fully effective gameplay.

To install a graphics card first find out the x16 PCIe slot on the motherboard- the long slot near to the CPU socket and remove the expansion slot cover plates to the left of it.

Mostly video cards are of dual slot design, that means you need to remove the cover plate directly left of the PCIe slot and also the one above it.

Now put your graphics card PCIe interface with the slot and press it into the section.

After insertion re-insert the thumbscrews tightly into the place.

The installation of the graphics card is done at this time after this connects the power with it.

The power supplies probably have two six pin Molex power connectors plugged in unless it’s a fully modular design.

And if it is fully modular then find the cables in your supplier plug them into the PSU and then plug them into the graphics card.

With your graphics card fully powered, you’re ready to play.

6. More Battery and Power:

More Battery and Power

Taking Power supply is also one of the easiest steps.

It is done by taking off all the power supply out of its box and set aside all the cables that are going to be used later.

Depending on the model the power supply may be completely modular or partially modular or not at all modular.

To install it you’re going to put the PSU into the case, mostly found at the bottom, so that the power plug and on/off switch face out of the rear of the case.

The orientation of the power supply face up or face down depends on the case.

If your case is at the bottom you can orient the fan down to pull in the cool air from the case.

If your case doesn’t have that ventilation at the bottom then simply orient the power supply so that the fans face up, into the case.

With the power supply nested against the back of the case, find the power supply screws that came with your case and screw than tightly.

So this is how you can build your own PC. Also, check some Best Gaming Laptop under 1000 USD if you don’t have time to build your own gaming computer.

Watch this video tutorial to assemble PC for gaming (step by step):

Wrapping Up

This article was all about the important types of equipment and devices required to make your PC a full gaming PC.

This article makes you aware of the basic requirements to build a gaming PC with some of the steps and guide to install some necessary elements into your PC by your own.

To have a gaming PC is an expensive deal but the wonderful experience of playing the game on the best gaming PC build by you is much more exciting and joyful.

May this article will help you in building a gaming PC in your budget and expectations.

In case you have any doubts regarding this, don’t forget to leave a comment below. I will reach out to you at the earliest.

Share How to Build a Gaming PC in 2018 (Full Beginners Guide) with your friends. Let them build their gaming pc by themselves.
